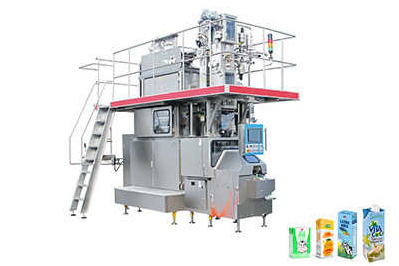

JB-7500 Aseptic Brick Carton Aseptic Filling Machine for 100ml – 330ml
Aseptic Brick Carton Filling Machine Description
The machine applies to fill UHT milk, fruit juice, coffee, tea drinks, plant protein drinks, wine and a variety of non-carbonated drinks into aseptic cartons, auto-complete feeding, sterilization, filling, forming, packaging in the form of paper aluminum composite cartons to keep long shelf life for safe, fresh, and flavorful without refrigeration or preservatives. The machine uses all stainless steel materials, core components such as the electrical system, pneumatic system, filter screen, and electric control system are carefully selected from well-known branded suppliers in Europe, America and Japan. It is fully automatic controlled by PLC, real human and machine communication through touch screen with different language version. The machine has complete safety guarantee system, got CE certificate, has complete quality control system with complete failure detection system, all the fault can be detected by our machine PLC system, and show the problem solving method on the touch screen. The machine has very high filling accuracy, filing accuracy is only ±1.5%. It’s designed with features of simple structure, smooth and efficient operation, easy maintenance, highest possible output, lowest possible operation cost and high food safety. All the machine parts have undergone rigorous testing to bring the performance to an advanced level. Innovative design, high quality components and thorough testing ensures stable and dependable performance at customers site worldwide for dairy, juice beverage and other non-carbonated drinks production.
Aseptic Brick Carton Filling Machine Technical Parameter:
| Item | Specification |
| Model | JB-7500 |
| Name | Aseptic brick filling machine |
| Capacity | 7500 packs per hour |
| Filling Volume | 100 ml, 125 ml, 160 ml, 200 ml, 220 ml, 250 ml, |
| Dimension | 4690×2540×3760mm |
| Connect | 2200 mm (W) × 3500 mm (H) |
| Weight | 5000 kg |
| Electrical | 380V±10 %( 3φ) 50/60Hz |
| Motor | 35 KW |
| Air consumption | 500±100L/Min (0.6～0.7 MPa); Connect: Thread 1/2″ |
| Tap water consumption | 15 L/M (0.3～0.45 Mpa;≤ 20℃); Thread 1/2″ |
| Steam consumption | 4.5kg/H (130 ± 5℃、0.17 ± 0.03 Mpa) ;Connect:DN25 |
| H2O2 consumption | 0.6～ 1.0 L/H（30～50%） |
| Control system | PLC（HM5） |
| Discharge conveyor | chain |
| Filling temperature | 5℃～50℃ |
| Filling Numbers | 1 |

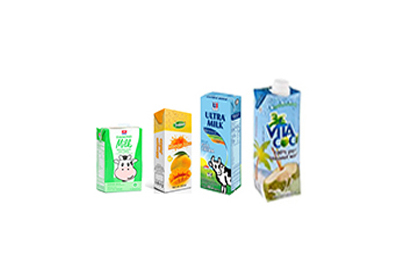

| Packaging forms | paper – aluminum composite bricks aseptic brick shape |
| Sterile package shelf life | the paper aluminum composite film, under normal temperature 25℃ ~ 30℃,Shelf life is 6 months for pure milk, 12 months for juice beverage. |
| Access to the air pressure | 0.8 Mpa |
